Passing conditional CSS in custom component

[AJVancattenburch]

I am updating a legacy HTML component at our work into a custom component I am building in React using Retool's custom component creation template.

My question is, how would we conditionally style properties as we can in an HTML component that is provided by Retool?

I have columns in our original HTML component that where the column headers are conditionally colored depending on which columns they are for column grouping purposes. The user can select 2 different views, in which each view has different columns that need to be grouped by color.

For example, in our original Retool HTML component, we are able to add the following in our HTML component's inspector in our CSS styles section so we can conditionally color grouped columns depending on the view (a.k.a. segment) that is selected like so:

/* Other Column Header Titles */
    .report-item {
      padding: 5px 10px;
      width: 7.5%;
      height: 30px;
      overflow-y: hidden;

      /* HEADER TITLES */
      /* EBIT, Commitment */
       &:nth-of-type(n+2) {
        background: linear-gradient(transparent 20%, #e0eef5cf, transparent) {{ theme.automatic[4] }};
      }

      /* VBP, HVLDL, HCAHPS | #7 Med, ALOS */
      &:nth-of-type(n+4) {
        background: linear-gradient(transparent 20%, #f0f0f0, transparent) {{ theme.canvas }};
      }

      /* HH Census, HH Med %, Hospice AD Census || Room Occ., Move-In Cost */
      {{segmentedControl1.value === 1
        ? '&:nth-child(n+6)'
        : '&:nth-child(n+7)'}} {
        background: linear-gradient(transparent 20%, #eef8f080, transparent) {{ theme.automatic[3] }};
      }

Yet when we have those same styles applied in our code editor, it obviously does not recognize the same methods that Retool allows i,e, using javascript in our CSS styles to conditionally style elements.

Any way around this or something that I'm missing here? Any information would be thoroughly appreciated!!

Thanks Retoolers!

[Paulo]

Hi @AJVancattenburch, here is an example of setting the background color of a button within a Custom Component dynamically based on user interaction with a Retool component:

In your Custom Component, declare a Retool state variable:

 const [buttonColor, setButtonColor] = Retool.useStateString({
    name: "buttonColor",
  });

Use inline styling for the target element, and reference the value of the state variable:

<button onClick={clearInput}
    style={{ backgroundColor: buttonColor }}> // state variable
  Clear
</button>

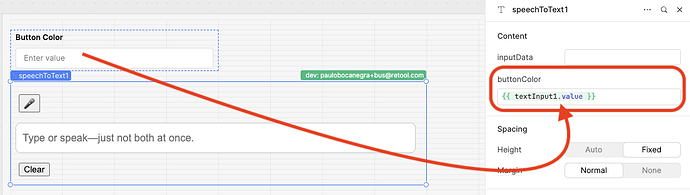

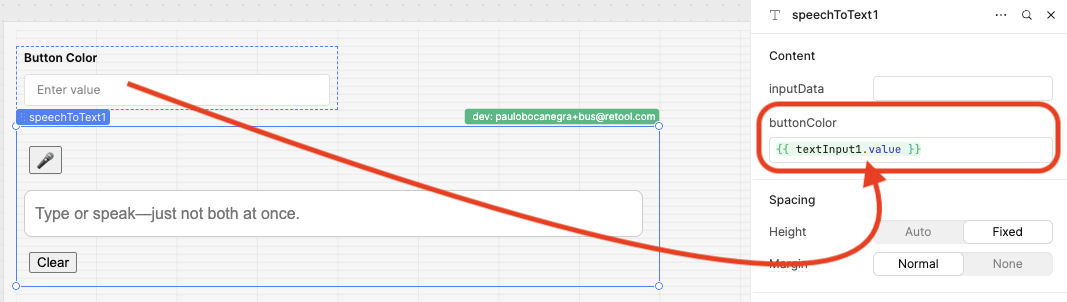

Because we declared the Retool state variable, we can set its value from the canvas:

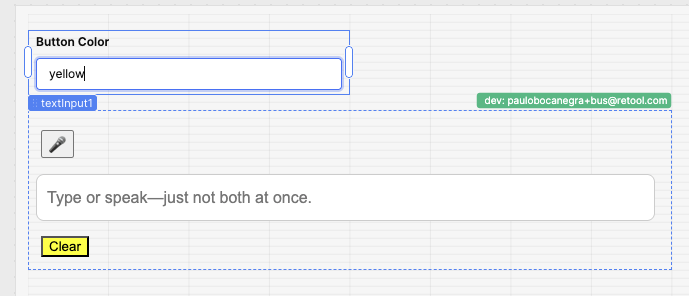

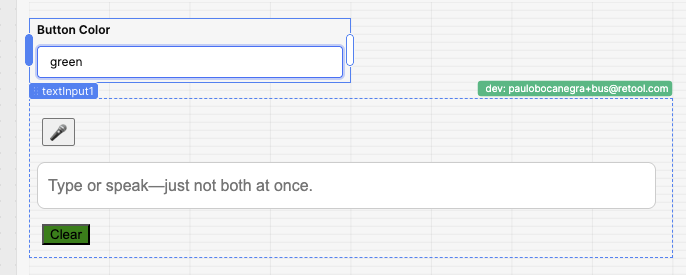

In action:

From looking at your selectors, your use case is more complex. I'm happy to take a look at the code of your Custom Component to help you find a way.

[Darren]

I'll echo that sentiment, @AJVancattenburch! Happy to dive into this further, especially if you're able to join Office Hours at some point.

In general, though, I agree with the approach that @Paulo recommended above. The only way to expose Retool data within a custom component is to pass it in as a state variable, meaning you'll be limited to inline styling.

[Darren]

Let us know if you have any additional questions about this, @AJVancattenburch!

[AJVancattenburch]

Hey @Darren wow I'm really sorry about the late reply on this! As complexities grew for this dashboard, I ended up learning about and creating a custom component library for our org so we could implement this data into a custom component.

Custom components are definitely the power we needed to be able to return relative keys from nested collapsible table rows to retrieve and calculate all the detailed aggregated metrics we needed for our performance graphs!

I really appreciate you both following up!

[Darren]

No worries! Glad to hear that you found a good solution. I'm a huge fan of the new Custom Component Library.
