Hello, i'm trying create a wordcloud on retool.
First, i created a stopword list.
Second, i create a query to count words that not inserted on stopwords.
So i get a array with words and quantity, with this query:
SELECT
LOWER(word) AS word,
COUNT(*) AS size
FROM
(
SELECT
REGEXP_SPLIT_TO_TABLE(caption, E'\\s+') AS word
FROM
ig_other_posts
) AS subquery
WHERE
LOWER(word) NOT IN (
SELECT
LOWER(word)
FROM
stopwords
)
GROUP BY
word
ORDER BY
size DESC
LIMIT
100;
Great. To show wordcloud, i'm trying to follow this topic:
But not success.
On anyChart docs, i've founded this guide:
Looks like a way to construct.

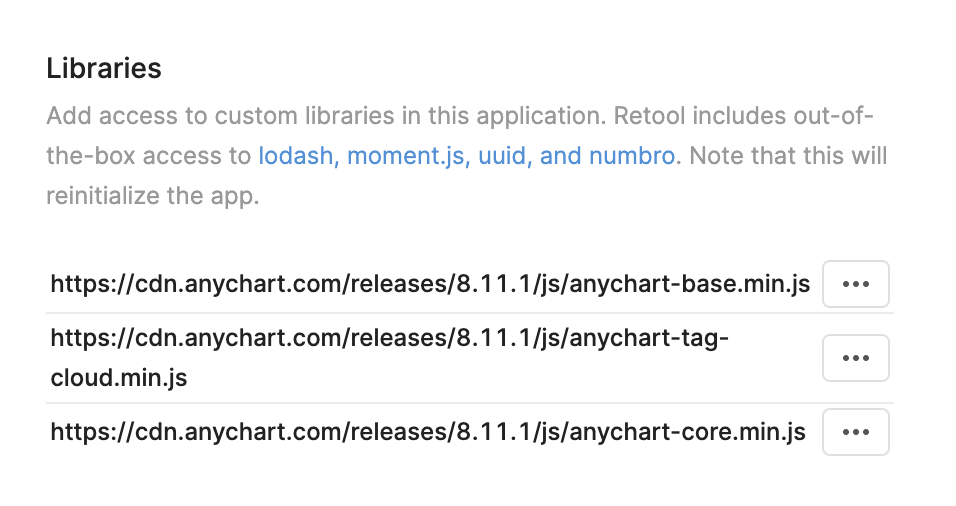

Now, i inserted https://cdn.anychart.com/releases/8.11.1/js/anychart-core.min.js and https://cdn.anychart.com/releases/8.11.1/js/anychart-tag-cloud.min.js modules on js.
And inserted a HTML module with this code:
And trying to insert js code:
anychart.onDocumentLoad(function () {
data: [
["Chocolate", 5],
["Rhubarb compote", 2],
["Crêpes Suzette", 20],
["American blueberry", 2],
["Buttermilk", 7]
]
// create an instance of a pie chart
var chart = anychart.pie();
window.Retool.subscribe(function(model) {
// set the data
chart.data(model.data);
// set chart title
chart.title("Top 5 pancake fillings");
// set the container element
chart.container("container");
// initiate chart display
chart.draw();
})
});
What's the next step? Because app remains blank.
(I know that the date should be from my query, but even with that fixed date it is not showing anything)
Thanks!
