Expose events/action from a module

Queries and Resources
1

Greetings,

I decided to try out Modules today with an Event selector (using a drop-down selector) used in many of our apps. Is there a way to expose an onSelected event from a module so it can call/run a javascript query in the application the module is being used in? I hope that was clear.

Thank you,
Brett

2

Hey Brett,

I think you should be able to use a "Query input" to your module, so that you will be able to run a query from your app based on changes in the module:

3394×1784 530 KB


Then in the app, you would just need to specify the input query in the module inspector panel:

630×528 6.61 KB

1 Like
3

Huh, thats pretty interesting. I'll have to give it a go

4

👍 Let me know if you run into any other questions/diffficulties!

5

So I am not sure if I used this since asking, but I had another need to today and as you laid this out I am able to trigger a query in my application from the module's event.

For future and others' reference:

  • In the module I setup and input called OnChangeQuery with type query and provided a description for the input.
  • When using the module in the application there is a new value in the basic section, yep, OnChangeQuery. I set this value to the query I want run on change value.

Works as expected. The query is run when the selected value is changed.

Thank you @mark The instruction I needed :slight_smile:

1 Like
6

I think this might help me do what I want, but it doesn't seem to be working.
I want to have a module that contains a form with some input fields. When the submit button is pressed, I want it to run a query that uses the input fields in a rest call. I then want to put the results in the output. An app using the module would then populate a JsonEditor with the results.
I haven't gotten it to work. My module works, and I added it to an app, created a Javascript query that simply runs "return myModule.output1;" and assign that query as the input query for the module. The query is invoked but seems to return nothing (empty string).

7

My bad, I didn't quite have things wired together properly. Works great!

8

OK, I do have another challenge - After setting some fields in a form in my module and using the above technique to emulate an event, I later on want to be able to clear the text fields inside the module from elsewhere in the application it is used in.

9

You will likely need to create an input to the module which can be used to trigger a JS query inside the module which calls form.clear(). Then in the app, you would be able to pass a value into that input to trigger the form clear. Let meknow if you have any difficulties getting that implemented!

10

How would I trigger a JS Query on change of the input variable?

11

I am not sure I am following, what do you mean by input variable?

12

Unfortunately, JS queries do not support "Run on inputs change". To work around this, I often will use a "query JSON with SQL" query that does something like

select * from {{input.value}}

then have that query trigger the JS query I want to have run when the input changes. I believe that we do have plans to allow running JS queries on input change in the future, but at this time, I don't have a timeline for that

13

Above, @mark suggested I "create an input to the module which can be used to trigger a JS query inside the module". I don't see a way to provide an input externally to the Module that causes the module to trigger a JS Query.

Ahh.. I see he has responded. That makes sense.

Better ability to affect Module internals and have module internal events propagate out would sure be nice.

14

Oh, sorry, I misunderstood. You can create an input in the upper left of the editor, and then pass a value into the module from your parent app. For example:

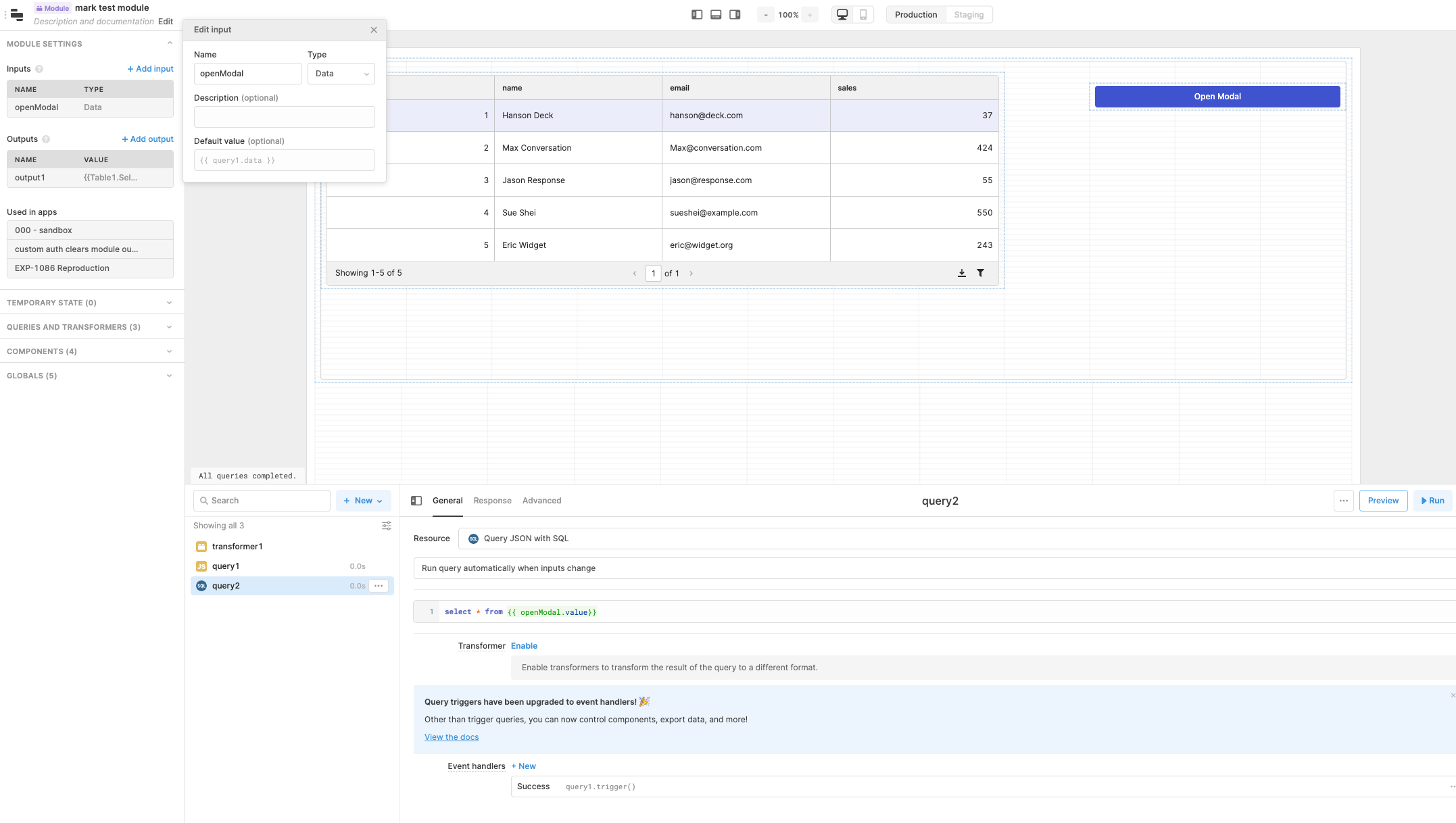

Module editor:

2154×1218 225 KB

Using the module in an app:

2 Likes
15

Yeah, I get it now - it's the "query JSON with SQL step" that that I was not clear on.

16

Ah gotcha. :+1: Let me know if you run into any issues setting this up!
